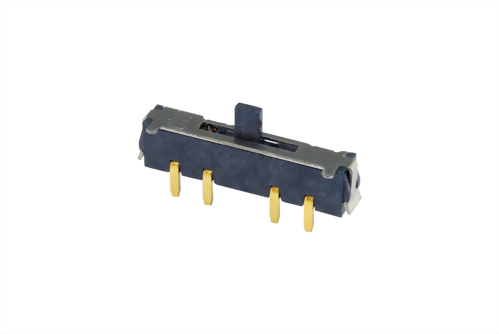

MINI SLIDE SWITCH
SPECIFICATION:
Rating: 300mA 4V DC
Circuit: 1P4T 5PIN
Travel: 2.5mm
Operating Force: 80 ~ 150g
Knob Length: 2.0mm
Dielectric Strength: AC 100 V 1 Minute
Insulation Resistance: 100 MΩ Mim. 100V DC
Contact Resistance: 70MΩ
Operating Temperature: -25oC ~ +80oC
Mechanical Life: 10,000 Cycles
Electrical Life: 10,000 Cycles
＊Momentary
Approvals : RoHS
