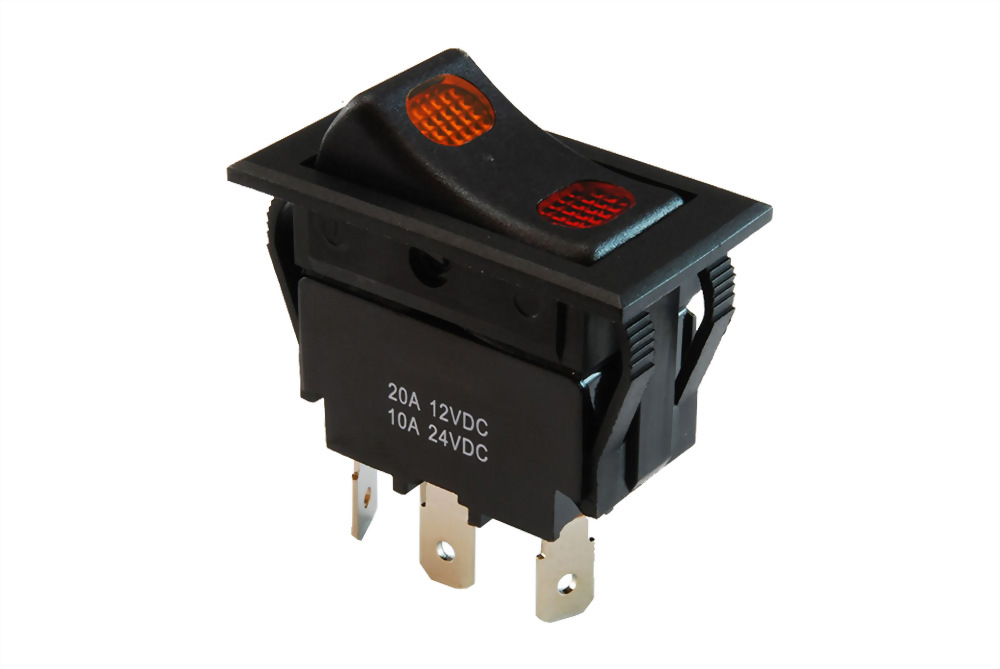

SPECIFICATION:

Rating: 20A 12V DC

Mounting Hole: 37.5 x 20.2mm

Operation Force: 900 ± 300g

Function: ON - OFF 4PIN with Two Lamp

Terminal Type: #187 Terminal (4.8mm)

Insulation Resistance: 100 MΩ Mim. 500V DC

Contact Resistance: 50MΩ Max.

Withatand Voltage: AC 1,500 V 1 Minute
