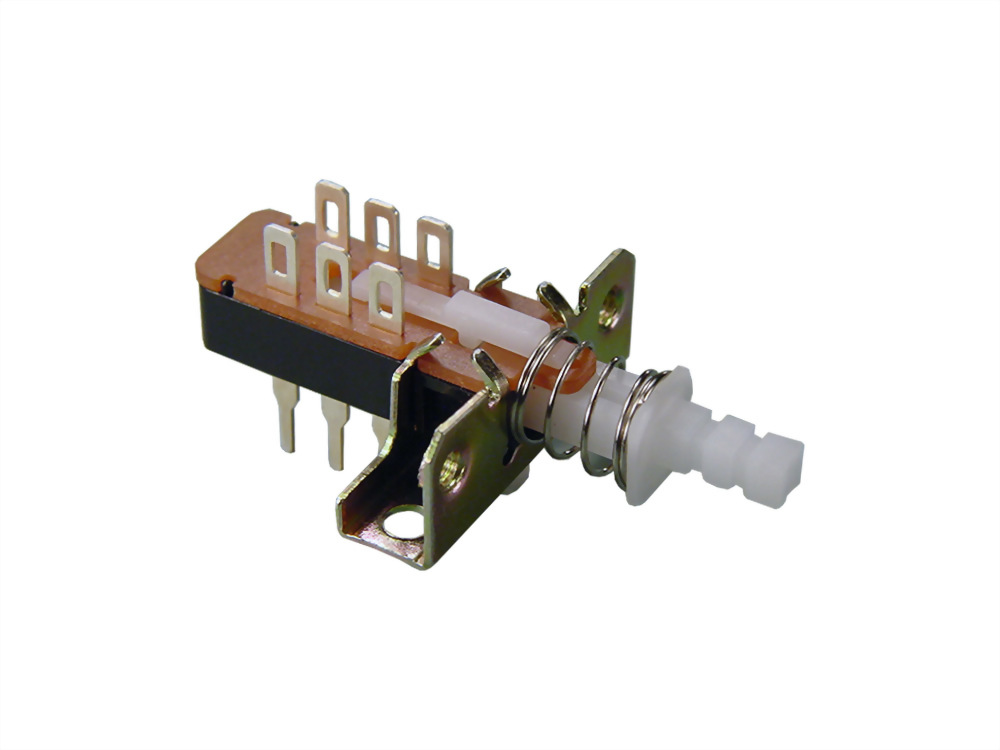

按壓開關 (SPA-119 Series)

SPECIFICATION:
Rating: 0.5A 100V AC
Screw Hole: 20mm
PIN Pitch: 4.0mm
Operating Force: 300 ± 100gf
Insulation Resistance: 100 MΩ Mim. 500V DC
Contact Resistance: 20MΩ Max.
Dielectric Strength: AC 500 V 1 Minute
Approvals : RoHS

型號 : SPA-119 Series

數量 :

產品敘述

SPECIFICATION:

Rating: 0.5A 100V AC

Screw Hole: 20mm

PIN Pitch: 4.0mm

Operating Force: 300 ± 100gf

Insulation Resistance: 100 MΩ Mim. 500V DC

Contact Resistance: 20MΩ Max.

Dielectric Strength: AC 500 V 1 Minute

Approvals : RoHS
