SPECIFICATION:

Rating: 15A 125V AC / 10A 250V AC

Vithstand Voltage: AC 1500 V 1 Minute

Insulation Resistance: 200 MΩ Mim. 500V DC

Contact Resistance: 20MΩ Max.

FUNCTION:

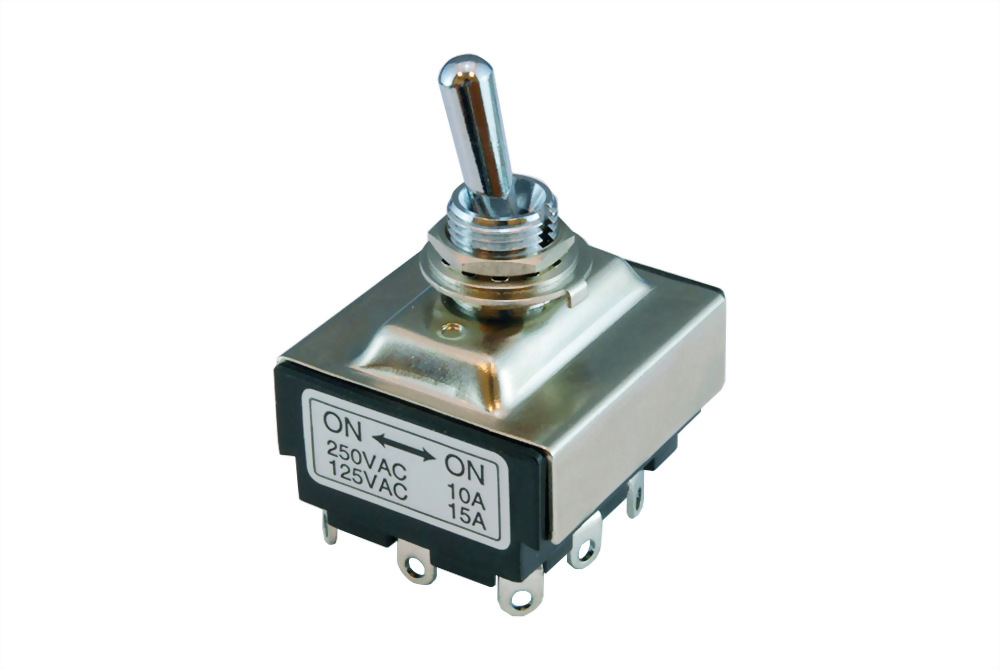

3PDT (9 PINS)

Option Function: 2,3

Approvals : RoHS,UL

Ordering Guide

Series No.

SLB-703= SPST (2PINS)    SLB-704= SPDT (3PINS)

SLB-705= DPST (4PINS)    SLB-706=DPST (6PINS)

SLB-708= 3PDT (9PINS)    SLB-709=4PDT (12PINS)

Option of Function:

口 = 1=ON-OFF     2=ON-ON             3=ON-OFF-ON

       4=ON-(ON)     5=OFF-(ON)         6=(ON)-OFF-(ON)

       7=ON-(OFF)   8 =ON-OFF-(ON)   9= (ON)- (ON)

Terminal Type:

H1=Screw Type 1      H2= Screw Type 2       H3 = Solder Type

H4= 187” (4.8mm)      H5= 250” (6.3mm)
